Ebike Bafang BBS02B 36V 500W Mid Motor Kits E-bike Mid Crank Motor Conversion kit With LCD Display Electric Bicycle DIY Parts

Sale!

$ 365.37$ 424.62

Clear
SKU: 1000005289269
Category:

Description

Product Feature :



{Universal Compatible }  Bafang BBS02B  Mid drive motor kit is compatiable with mountain bike,road bike and so on. This kit is designed to all bikes with 68-73mm bottom bracket



{Two riding mode}   Electric bikes & pedal bicycle, faster traffic & physical exercise can be achieved at the same time



{Shipping & After-sale service }  We have oversea warehouse in United States ,Russia ,Germany ,Spain ,Poland ,Canada ,Australia and Japan .You could choose the delivery location when you place your new order or we will according to your location to choose the fast shipping warehouse for you .Enjoy the fastest and most convenient local logistics and after -sale service



{DDP service }   For below countries, the DDP service is included .The tax duty is paied by us. (

Russian Federation, US, Canada, Ukraine, Korea, United Kingdom, Germany, France, Spain, Netherlands, Italy, Bulgaria, Belgium, Latvia, Poland, Denmark, Finland, Portugal, Sweden, Slovakia, Slovenia, Greece, Hungary, Czech Republic, Lithuania, Luxembourg, Romania, Ireland, Estonia, Austria, Croatia, Australia)



{Warranty}  All the products in our store we will provide 1 year warranty



Motor Specification:



Power:500W
Voltage:36V
Controller Current: 25A
No Load Speed(RPM) :120
Load Speed(RPM):113
MAX Torque:100 N.m
Efficiency: > 80%
PAS SENSOR : Speed Sensor
Reduction Ratio: 1 : 21.9
Centification:CE/EN 14764/ROHS
Waterproof Grade:IP65
Net Motor Weight: 4.24kg
Motor kits Weight:5.6-6.0kg
Bracket bottom length:68mm
Display Working Temperature:-20-80C

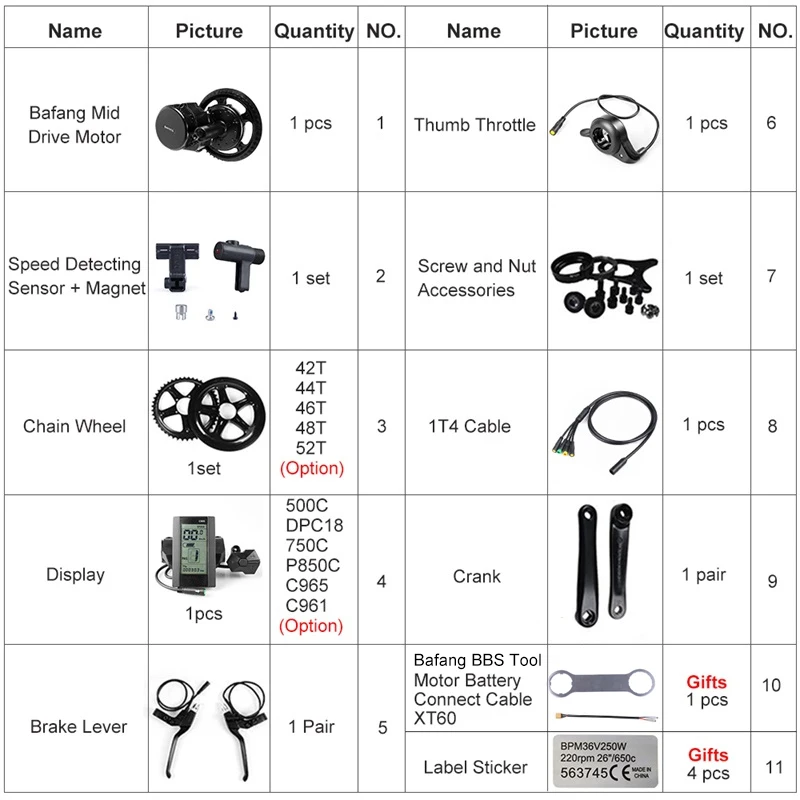

Packing list:



1.BBS02B 36V 500W Mid Drive Motor

2.Speed Detecting Sensor + Magnet

3. Chain wheel with chainring plastic guard  44T (default)/ 46T /48T/ 52T (Optional)

4.LCD Display:500C/C965/C961/850C/750C/C18/860C/P850C/SW102/800S/750C With Bluetooth function( Only for IOS 9.3.5+ systems on iPhone)— Optional

6.Thumb Throttle

7.Brake levers (default) Or hydraulic sensors (Optional)

8.Screw and Nut Accessories

9.EB-BUS water-proof cable(1 to 4 cable)

10.A pair of Cranks

11.Gifts: Install Wrench (default)+ XT60 Motor connect to Battery Cable *1 set

Label Stickers * 4pcs (For EU)  + Gaskets * 8 Pcs For Bottom Bracket 73mm



Notice:If you need to change something about the list .Feel free to contact us on email or leave us a message .

1.For the hydraulic brake sensor ,We could change the brake lever to hydraulic brake sensor for you for free .

2.For the chainwheel wheel type ,We could change it for you for free .

3.For the gift of install wrench ,We could change  the install tool to 6V front light for you for free .



Shopping help:

How do I know if this mid drive motor fits for my bike?

This mid drive motor fits for the bike with 68mm (2.68inch) or 73mm (2.87inch) wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. We'll send extra install accessoreis for 73mm bottom bracket.



How to measure the bottom bracket?

You will find the answer Measuring the bottom bracket shell width only, without any bearings or other pieces. For more help you can search on Google or Youtube or Contact us by email



How many days the buyer can get the motor kit?

If you choose ship from Oversea warehouse .It will  fast shipping for you .In general ,You will get the parcel within 5-15 days .


Warm Tips:

1. Standard: JIS. Bottom bracket shoud be 68 – 73 mm. We will send you extra parts(Gaskets) for 73mm bottom bracket shell.
2. Customers might receive more than one parcel for an order, please check the status of order and read messages on email  every now and then to get full information on the delivery.
3. Always test the motor before installing on the bike, DO NOT remove any connection with the power supply is on.
4. Contact us at the first time when you have problem, we would be glad to help you at the first time .9E9B29C7-1829-4a33-B885-59FECE9BE638组合图bbs





Ebike Bafang BBS02B 36V 500W Mid Motor Kits E-bike Mid Crank Motor Conversion kit With LCD Display Electric Bicycle DIY Parts

Additional information

ships-from

China, Poland, United Kingdom, GERMANY, SPAIN, Australia, Russian Federation, France

color

44T P850C HOT, 46T P850C HOT, 48T P850C HOT, 52T P850C HOT, 44T DPC18 NEW, 46T DPC18 NEW, 48T DPC18 NEW, 52T DPC18 NEW, 44T C961 DISPLAY, 44T C965 DISPLAY, 44T 500C DISPLAY, 44T SW102 DISPLAY, 44T 860C DISPLAY, 44T NO DISPLAY

brake-type

Brake Lever, Brake Sensor
