36V 250W-500W E Bike Conversion Kits Electric Bicycle Motors Battery Samsung 36V 12ah Electric Motor Wheel Bicicleta Electrica

Sale!

$ 103.34$ 337.23

Clear
SKU: 32993095594
Category:

Description

1) 1*Motorized wheel

250w, 350w, 500w
20″,26″,700C (If you need other size like24 inch, 27.5 inch or the29 inch, we can provide a custimized service; if you order 29 inch, please take a picture to show us your tire.)
One color
If you need the tire, you can contact us ,we will change the price. Tire and Tube totally extra:$32

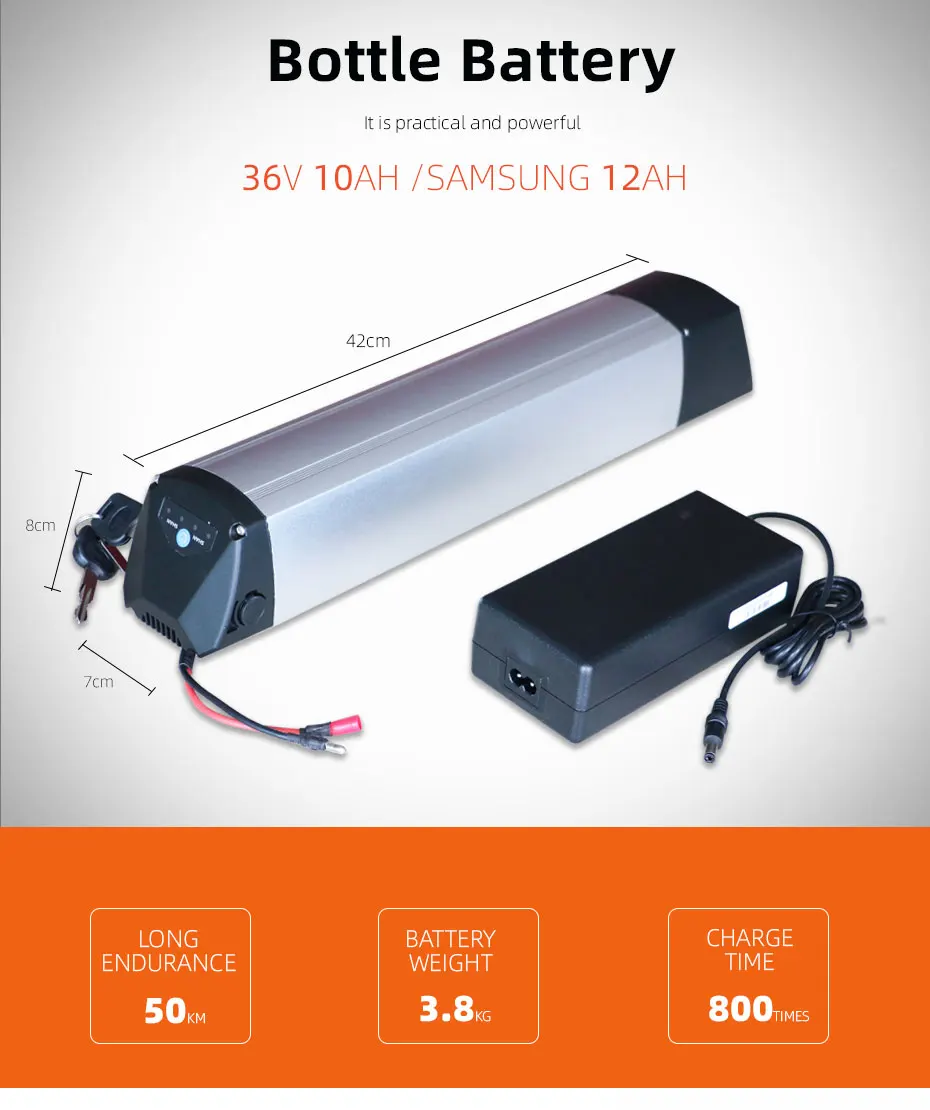

2) 1*Bottle Battery 36V 10Ah / SAMSUNG 12Ah
( If you buy the Samsung battery, we will put the certificate of Samsung battery in the package.)

3) 1*Battery Charger Europe Standard

4) 1* Speed sensor & Sensor disc plate 12 pellet (right side PAS)

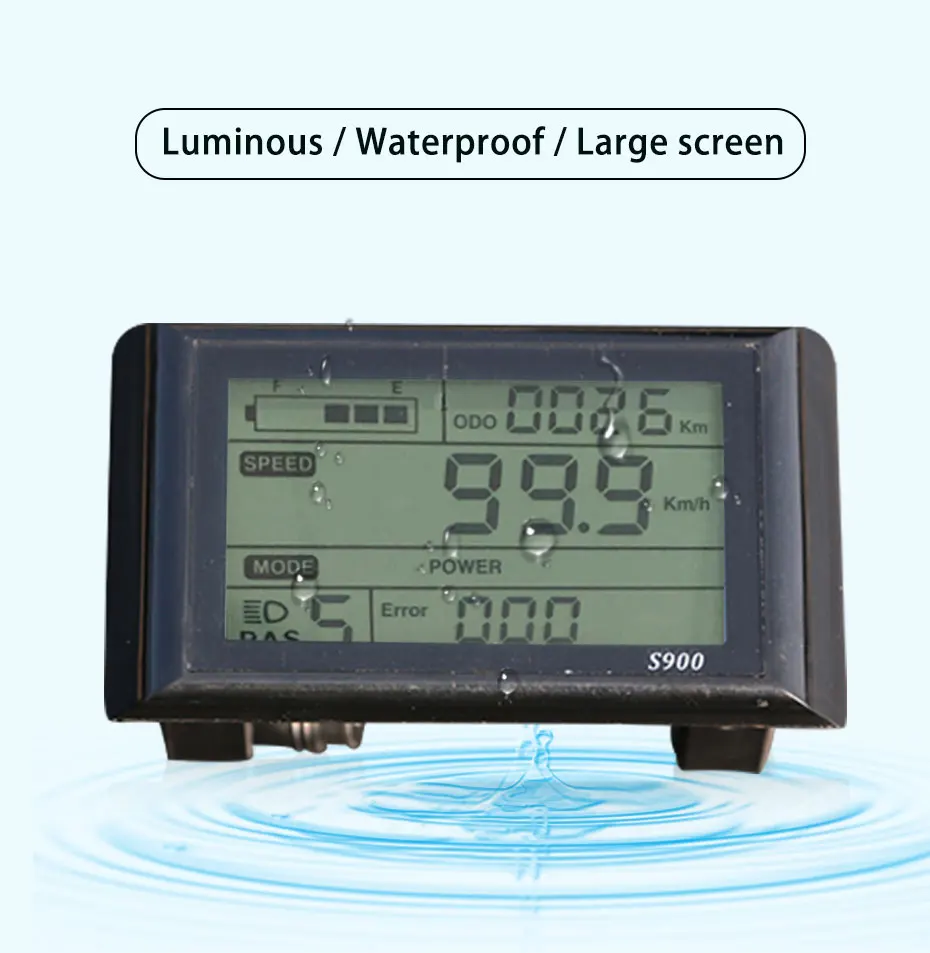

5) 1*Display LED displayer or LCD displayer different selection optional
(When you receive the kit, you can contact the sellers to get the manual of the display)

6) 1*Waterproof main Cable

7) 2* Power cut-off Brake lever (if you need the brake sensor, we can change the brake level to the brake sensor.)

8) 1* Throttle Thumb throttle/ Half twist throttle/ Twist throttle
(If you choose the Half twist throttle or the Twist throttle,we will put a set of grips free in the package.)

9) 1 *Controller

10) 1*headlight

11) 1*controller box (If you buy a 250W motor, we will put a small controller box;if you buy a 350W or 500W motor, we will put a big controller box.)

12) Accessories
Kindly leave us order message in this format after you place an order:

1. Front motor/Rear motor: Usually it’s front motor. Rear motor need to add $30 more.

2. Rim size: 20″,24″,26″,700C

3. Throttle: thumb/ half throttle/ twist

4. Super Cost-Efficient, speed up to 35-45 KMH, 50NM, efficiency ≥ 80%; (To meet the standards of the EU and North America, if you need limited max speed to 25km/h, we can provide a controller which can limit the speed, Please contact us.)

Detail description

1) It is Brushless Front Wheel Motor,And it is suitable to both the V brake and Disc brake.

2)The max speed of the motor will be 32km/h.(To meet the standards of the EU and North America, if you need limited max speed to 25km/h, we can provide a controller which can limit the speed, Please contact us.

3) The open size of the front fork is 100mm-105mm. If your size is same, then this kit will fit your bike.

4)The open size of the fork in the rear motor wheel is 135mm. If you prefer rear motor wheel. Please leave a message to let us know.

5) All necessary mounting accessories are included. Please see the packing list image. Notice: Brake levers can be changed to hydraulic and mechanical brake sensor— if you leave us a message about your requirements.

6)Can be successfully installed into an electric bicycle in just a few time by only a few tools.

36V 250W-500W E Bike Conversion Kits Electric Bicycle Motors Battery Samsung 36V 12ah Electric Motor Wheel Bicicleta Electrica

Additional information

color

36V 12AH 500W LED, 36V 12AH 500W LCD, 36V 12AH350W S900LCD, 36V 12AH500W S900LCD, 36V250W No battery, 36V350W No battery, 36V 12AH 350W LCD, 36V 12AH 350W LED, 36V 12AH 250W LED, 36V500W No battery, 36V 12AH 250W LCD
